Vertical Cable Railing Systems

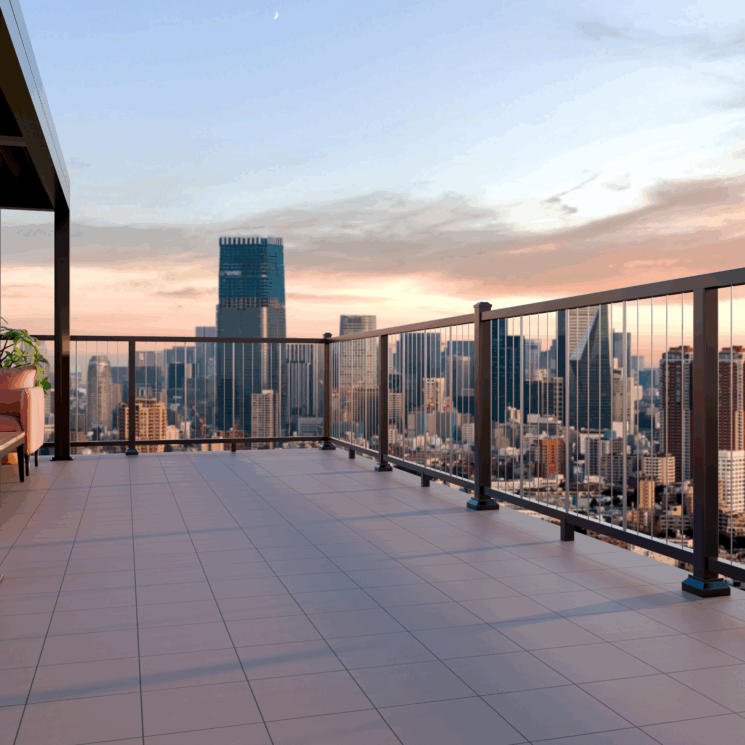

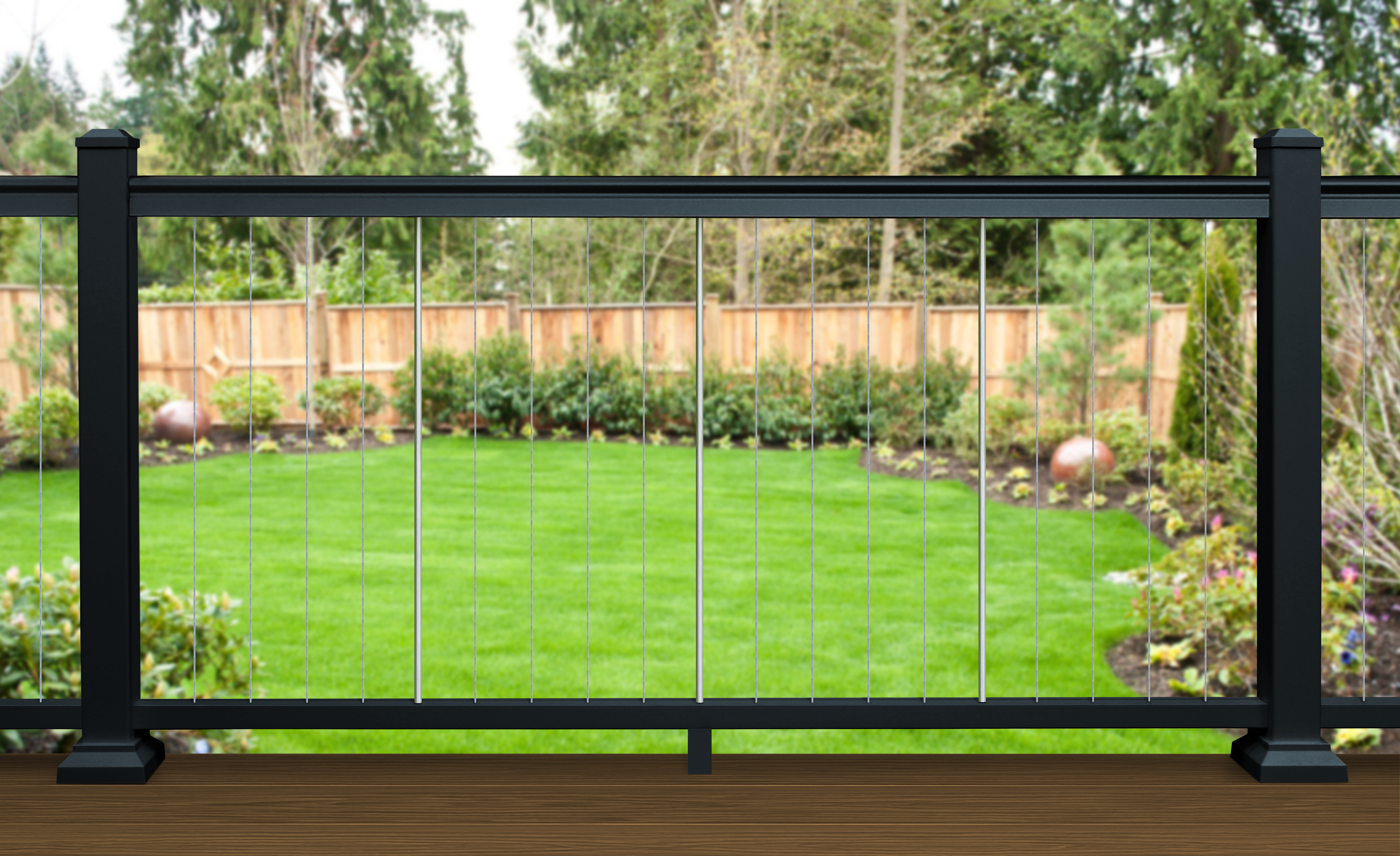

Ultralox’s vertical cable railing system offers a modern aesthetic with the added benefit of factory-tensioned safety. Designed for clean lines and fast installation, these pre-strung aluminum panel systems use marine-grade stainless steel cables, premium powder-coated finishes, and hidden hardware to deliver long-lasting performance in residential and commercial settings.
Overview
Contemporary Style. Code-Built Strength.
- Modern, Clean Lines: Slim vertical stainless steel cables offer a sharp architectural look.
- Pre-Assembled Panels: Panels arrive with pre-tensioned cables and integrated tension blocks.
- Durable Aluminum Construction: Powder-coated to resist corrosion, fading, and impact.
- Fast Installation: No cable threading or guesswork—drop panels in and lock them down.
- Fully Code Compliant: ICC-ES AC273 certified for use in both residential and commercial projects.
Details & Specifications
Our vertical cable railing system meets the demands of any project, from a custom deck to high-rise balcony.
Material & Finish
- 6000-series extruded aluminum
- AAMA 2604 architectural-grade powder coating
- Pre-installed 316 stainless steel cables
- Standard colors: Black, White, Bronze (Piano and Tuxedo by request)
Panel Specs
- Widths: 6ft and 8ft
- Heights: 36in and 42in
- Panels ship with pre-strung cables and tensioning blocks installed
- Factory-set cable spacing meets code requirements
Top Rail Profiles
- Alta (modern profile)

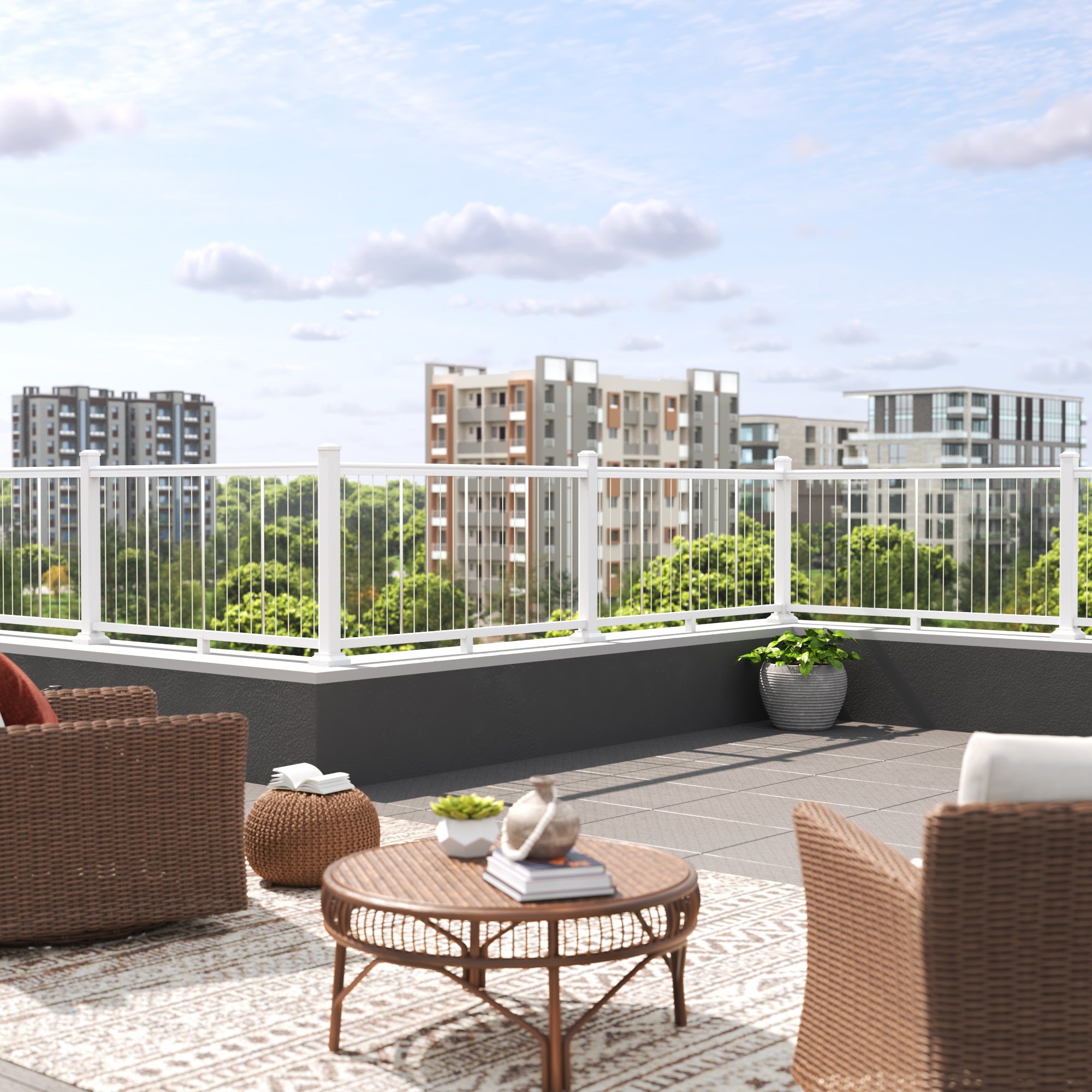

- Victorian (classic profile)
- Compatible with drink rail hardware
Posts & Mounting
- 3in aluminum posts required for full panel spans
- 2in posts available for shorter runs or combo systems
- Surface, fascia, and Juliet mount options available
Installation
- Panels drop into place with hidden fasteners
- Quick-lock system with minimal tools required
- Vertical Cable Tool Kit includes set screw drivers, support legs, and clips
- Step-by-step guides and installation videos available
Performance & Compliance
- Certified to ICC-ES AC273 for residential and commercial use
- Meets or exceeds 200lb (IRC) and 50lb (IBC) structural load requirements when installed in accordance with ICC-ES ESR-3485 and Ultralox installation instructions.
- Approved for stairs, balconies, and horizontal applications
Warranty
- 20-Year limited warranty on finish and manufacturing defects
- 10-Year coastal warranty with AkzoNobel Interpon primer upgrade
Resources
General Resources
Commercial Resources
Customize Your Railing
Colors
Black
White
Bronze
Top Rail Styles
Victorian
Alta
Drink
| Post-To-Post Top Rail | Combination Top Rail | Continuous Top Rail | |
|---|---|---|---|
| No Mid-Rail |
|
|
|
