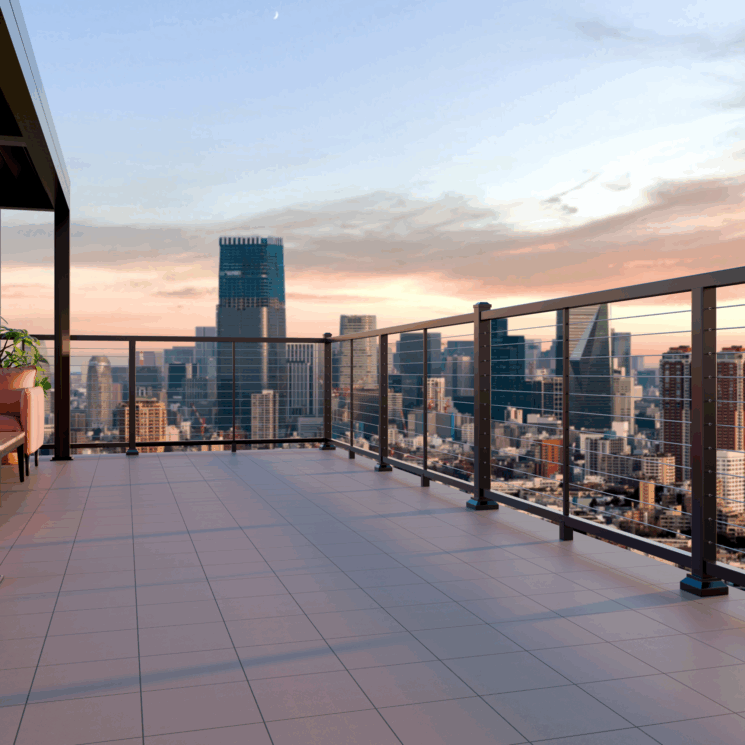

Horizontal Cable Railing Systems
Ultralox horizontal cable railing systems deliver open views, modern style, and proven performance. Featuring marine-grade stainless steel cables, powder-coated aluminum frames, and pre-engineered panel kits, this system installs fast and meets the highest safety standards for both residential and commercial projects.
Overview
Modern Sightlines. Built-in Strength.
- Unobstructed Views: Low-profile horizontal stainless steel cables preserve your scenery without compromising safety.
- Fast, Precise Installation: Panels arrive pre-strung and tension-ready, reducing setup time and jobsite labor.
- All-Aluminum Frame: Rust-free, powder-coated components designed to handle harsh environments.
- Two Configurations: Choose from Full Frame (top & bottom rails) or minimalist Top Rail Only.
- Certified for Safety: ICC-ES AC273 compliant for both IRC and IBC building codes.
Details & Specifications
Our Cable Railing system is strong enough for commercial applications with residential elegance
Material & Finish
- 6000-series extruded aluminum
- Architectural-grade powder coat (AAMA 2604 compliant)
- Cables: 316 stainless steel, factory-installed
- Colors: Black, White, Bronze (Tuxedo and Piano available by special order)
System Types
- Full Frame: Top + bottom rails with intermediate posts
- Top Rail Only: Sleek profile with open bottom and fewer components
Cable Specs
- 36in height: 9 horizontal cables
- 42in height: 11 horizontal cables
- Cable lengths available from 5ft to 60ft (in 5ft increments)
Panel Dimensions
- Standard widths: 6ft and 8ft
- Heights: 36in and 42in
- Max post-to-post span: 8ft using 3in posts
- Intermediate posts required based on layout
Top Rail Profiles
- Alta (streamlined, rounded profile)
- Victorian (more traditional styling)
- Drink rail add-on compatible
Posts & Mounting
- 2in or 3in aluminum posts
- Surface, fascia, and Juliet mount options
- Extended post tubes available for fascia applications
Installation
- Quick-lock assembly with minimal tools
- Cable toolkits available: threading, cutting, tension gauge
Performance & Compliance
- Engineered and certified to ICC-ES AC273
- Exceeds 200lb (IRC) and 50lb (IBC) structural load requirements
- Suitable for decks, balconies, rooftop amenities, and stair runs
Warranty
- 20-Year limited warranty on finish and manufacturing defects
- 10-Year coastal warranty with approved AkzoNobel primer system
Resources
General Resources
Commercial Resources
Customize Your Railing
Colors
Black
White
Bronze
Top Rail Styles
Victorian
Alta
Drink
| Post-To-Post Top Rail | Combination Top Rail | |
|---|---|---|
| Full Frame, No Mid-Rail |
|
|
| Top Rail Only, No Mid-Rail |
|
|
